Architectural specs Key advantages
18 gauge special corrugated sheets that cannot be kicked in
Anti rust powder coated paint
Tubular posts for extra rigidity
Custom configurations and heights
With this storage option, you’ll get
- Security, thanks to 18 gauge corrugated sheet metal and the tubular design that offers more strength than traditional wire lockers
- Simple design with controlled access to space
- Versatile and interchangeable system that can be relocated or added to areas as needs may change
- Pre-punched components and tubular posts that can be easily installed using ordinary hand tools and detailed drawings provided by us
- Painted with baked grey powder coat over phosphate-treated steel for lasting durability and protection against corrosion
Materials

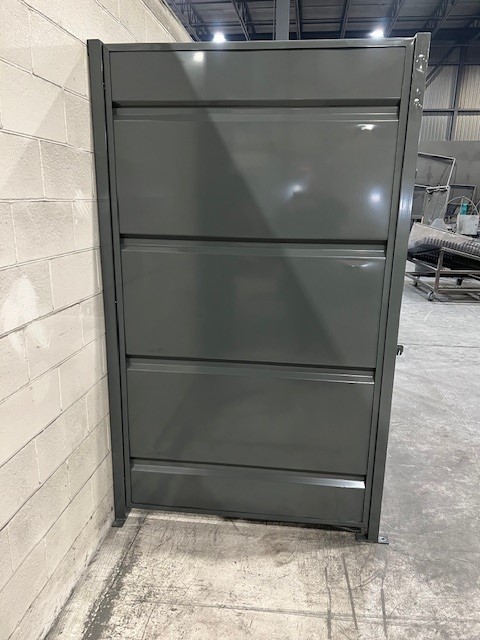

Panels
Panels shall be 18 gauge corrugated sheet metal welded into an angle frame of 1-1/4" x 1-1/4" x 12 gauge angle (32mm x 32mm x 3mm). All panels shall be fastened to posts by using 1/4" x 2-3/4" zinc bolts and nuts
Swing doors
Swing doors shall be made of the same material and method as panels. Doors shall be equipped with padlock hasps (option for cylinder lock), door strikes and 1-1/2" pair of hinges.
Posts
Posts shall be 2" x 2" x 16 gauge (50mm x 50mm x 2mm) square tubular steel welded to a base plate 2" x 6" x 1/4" (50mm x 150mm x 6.4mm) using two 2-3/4" x 3/8" anchor bolts.
Finish
Baked grey powder coat over phosphate treated steel.
