Architectural specs Key advantages
Meets all national fire prevention building codes
Allows existing lighting, ventilation and fire suppression systems
Anti rust powder coated finish
Detailed drawings provided with each order
Custom made to fit your needs
Options
- Special colors
- 16g sheet metal
- Expanded sheet metal
- 2″x 2″ posts (50 mm x 50 mm x 16 g)
- 24″ front mesh on perimeters to prevent stacking
With this storage option, you’ll get
- Wire mesh welded at every 6 inches (150 mm) on panels and the doors providing more security
- Easy access and use with reinforced swinging door
- Pre-punched components make these lockers easy to install using ordinary hand tools
- Painted with baked grey powder coat over phosphate-treated steel for lasting durability and protection against corrosion
Materials
Panels
Panels shall be 10g wire spot welded into 2'' x 2'' squares (50mm x 50mm x 3.2mm wire) welded into an angle frame of 1 ¼'' x 1 ¼'' x 12 angle ( 32mm x 32mm x 3mm ) welded at every 8'' inches (200mm) . All panels shall be fastened to floor and walls using 1/4'' x 1 1/4'' (6.4mm x 32mm) drive nails. All panels shall be fastened using 1/4'' x 3/4'' (6.4mmx 19mm) zinc bolts and nuts.
Ceilings
Shall be 2''x 4''x 1/8'' rectangles (50mm x 100mm) wire framed with 1 1/4''x 1 1/4'' x 12g angle (32mm x 32mm x 3mm ) angle on perimeters and secured with wire loop toes ( option framed tops available).
Swing doors

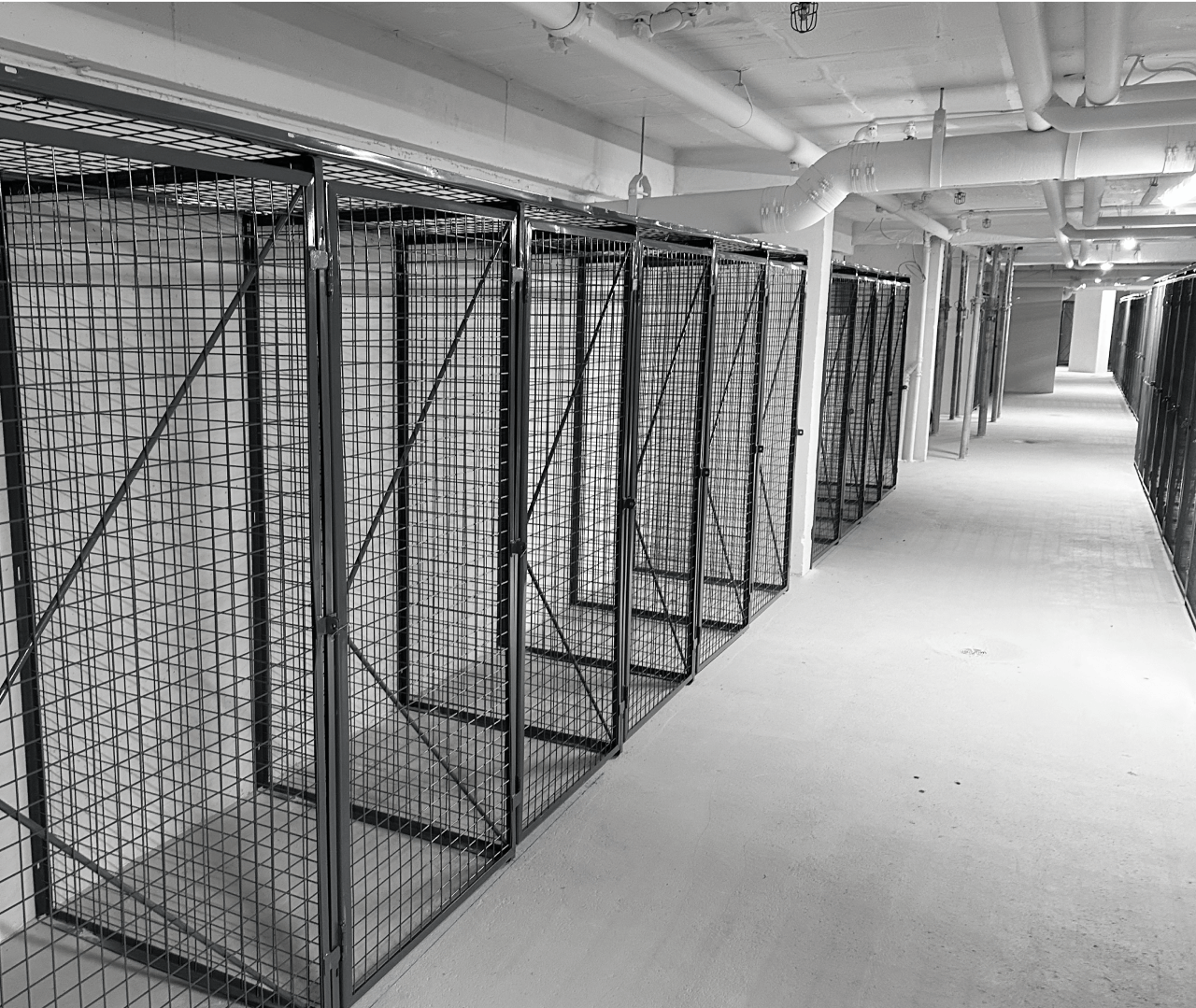

Swing doors shall be made of the same material and method as panels with an added ½'' rod ( 12.5mm) form center to corners . Doors shall be equipped with padlock lugs, door strikes and 1 1/2 pair of hinges.
Finish
Baked grey powder over a phosphate treated steel.
